QTEXB-3-24-RAG-ATEX

, ,

1.789,30 Br.

Qlight QTEXB-3-24-RAG-ATEX | Explosion proof Signal tower + Siren/buzzer | 24VDC | ATEX – EX Ⅱ2G Ex db ⅡC T6 Gb, IP66 / EX Ⅱ2D Ex tb ⅢC T85℃ Db, IP66

Interested? Apply for a business account

Qlight QTEXB-3-24-RAG-ATEX | Explosion proof Signal tower + Siren/buzzer | 24VDC

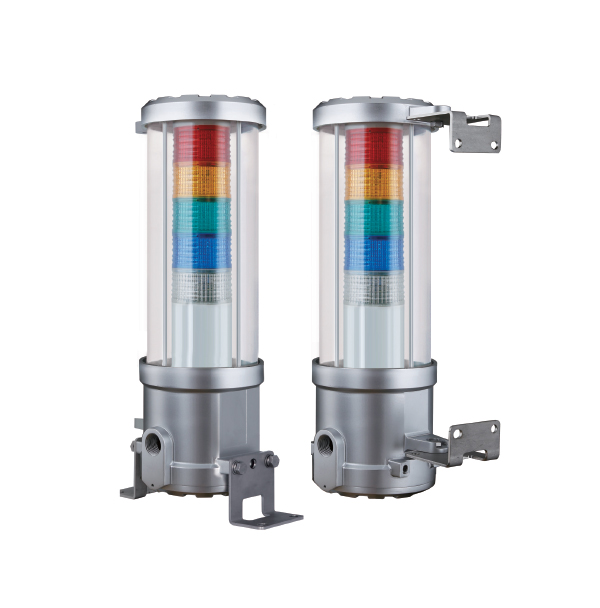

Explosion proof LED signal tower light with built-in buzzer for use in zone 1, 2, 21 and 22
Excellent distance visibility by using a special reflector to aggregate the light from the LED filament
Ø80 LED tower light mounted inside the flame proof housing
Aluminum housing provides excellent durability
Long-lasting high intensity LED light source
Terminal box located inside the housing for easy power wiring
Direct mount type and wall mount type available depending on application needs
Flashing rate: 60-80 flashes/min
Selectable between steady/flashing mode with proper wire arrangement
Explosion Proof LED tower lights with visual/audible signal that can be used in
hazardous environments
Volume : Siren buzzer, Max. 90dB at 1m
Lens color arrangement : R-Red A-Amber G-Green
Standard housing color: Silver
Cable entry: 3/4″ NPT
Materials : Lens-Tempered glass, Filter lens-AS, Housing-Al, Reflector-Heat resistant ABS
Certificates : ATEX – EX Ⅱ2G Ex db ⅡC T6 Gb, IP66 / EX Ⅱ2D Ex tb ⅢC T85℃ Db, IP66
Ambient operating temperature : -40°C…+60°C

Weight 4200 g
Naam bij leverancier

QTEXB-3-24-RAG-ATEX

Productcode

QTEXB-3-24-RAG-ATEX

Qlight QTEX Series
