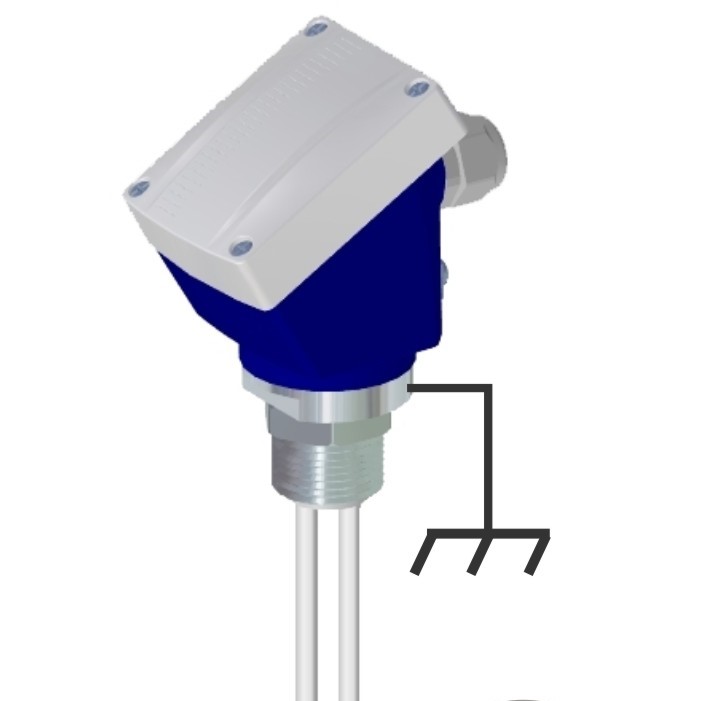

Disibeint NCPRI-TB-INOX-1E | Level sensor with integrated amplifier
Compact electrode holder for low tanks.
Length: 1000mm with insulated electrodes.
Adjustable with the selector knob and programmingbutton.
The following settings can be adjusted:
the status of the relay contacts, response time, sensitivity 1-100Kohm, filling or emptying.
The “Common” electrode is the mechanical connection.
Mechanical connection: G1″. SS AISI316 (1.4401).
Electrical connection: Connection in housing. PBT.
+70ºC.
5 kg/cm².
IP67.
With one electrode: control of one-point level.
With two electrodes: control, max. / Min.
