Qlight QTEXB-1-24-R-IECEx | Explosion proof LED Signal tower + Siren/buzzer | 24VDC | Max. 90dB | IECEx – Ex db ⅡC T6 Gb, IP66 / Ex tb ⅢC T85℃ Db, IP66

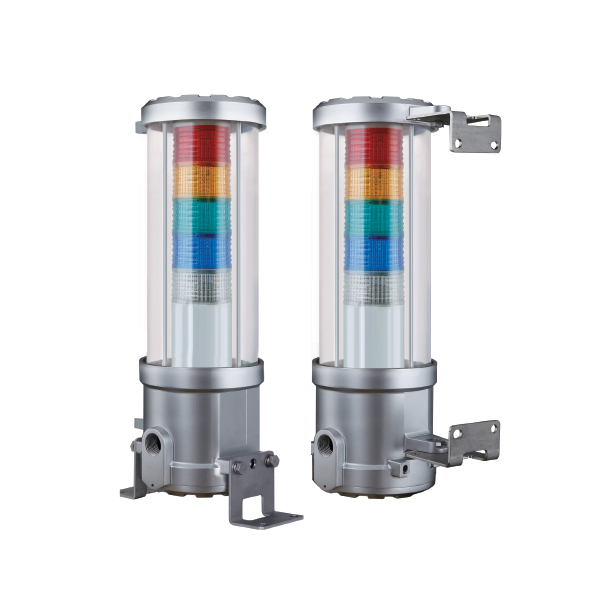

Explosion proof LED signal tower light with built-in buzzer for use in zone 1, 2, 21 and 22
Excellent distance visibility by using a special reflector to aggregate the light from the LED filament
Ø80 LED tower light mounted inside the flame proof housing
Aluminum housing provides excellent durability
Long-lasting high intensity LED light source
Terminal box located inside the housing for easy power wiring
Direct mount type and wall mount type available depending on application needs
Flashing rate: 60-80 flashes/min
Selectable between steady/flashing mode with proper wire arrangement
Explosion Proof LED tower lights with visual/audible signal that can be used in
hazardous environments
Sound tone & volume : Siren buzzer, Max. 90dB at 1m
Lens color arrangement : R-Red
Standard housing color: Silver
Cable entry: 3/4″ NPT
Materials : Lens-Tempered glass, Filter lens-AS, Housing-Al, Reflector-Heat resistant ABS
Certificates : IECEx – Ex db ⅡC T6 Gb, IP66 / Ex tb ⅢC T85℃ Db, IP66
Ambient operating temperature : -40°C…+60°C
