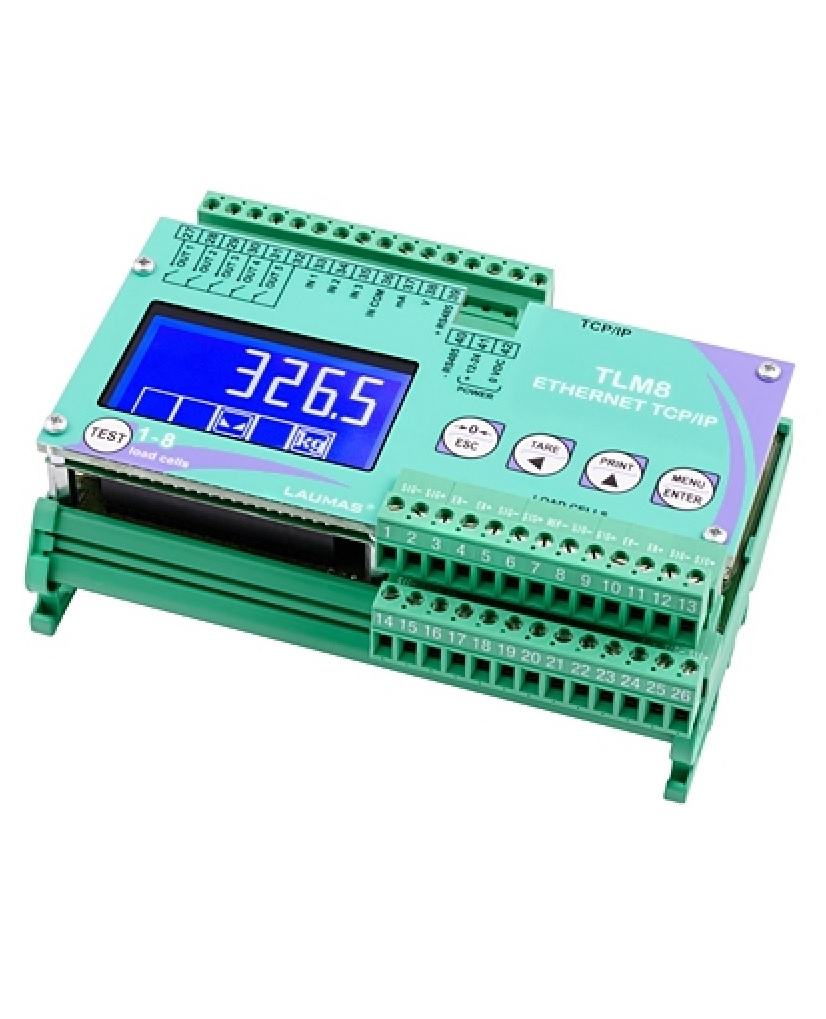

Laumas TLM8 Ethernet TCP/IP | Weight transmitter (RS485-Ethernet TCP/IP)
Weight transmitter with backlit graphic LCD display, 60×32 mm, 128×64 pixels. Four-key keypad for the system calibration. TEST key for direct access to the diagnostic functions. Dimensions: 148 x 92 x 60 mm.
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
16-bit Analog output: 0/4-20 mA; 0-5/10 V
Ethernet TCP/IP port for remote management (connectable to your PC, smartphone, tablet, etc. via web)
RS485 port (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
Mounting on Omega/DIN rail for back panel or junction box
8 channels A/D converter – 24bit (16000000 points) 4.8 kHz
Display range 999999.
