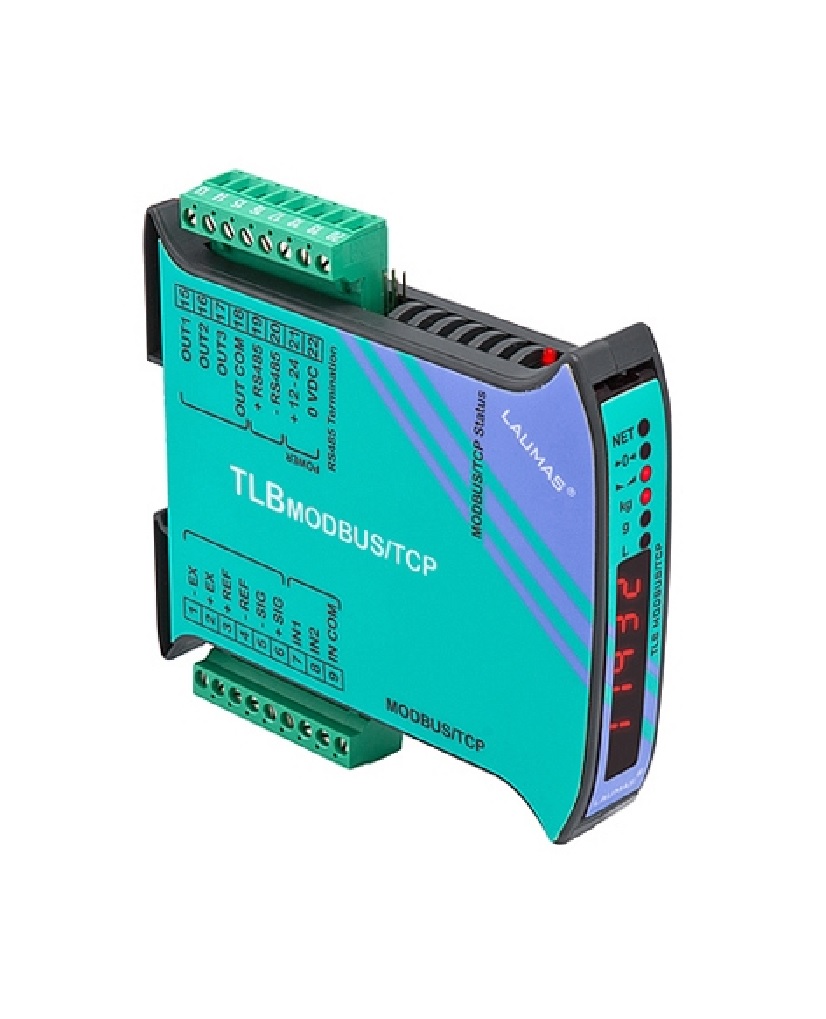

Laumas TLB Modbus/TCP | Load-cell transmitter | 24bit
Weight transmitter/indicator with six-digit red LED display (8 mm height). Space saving compact design. Four buttons for the system calibration. Six indicator led. Dimensions: 25x115x120 mm.
Slave Modbus/TCP port
RS485 port (Modbus RTU/Laumas ASCII protocol)
2 logic inputs, 3 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
OIML R61 – WELMEC Guide 8.8:2011 (M.I.D.)
Back panel mounting on Omega/DIN rail
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999
