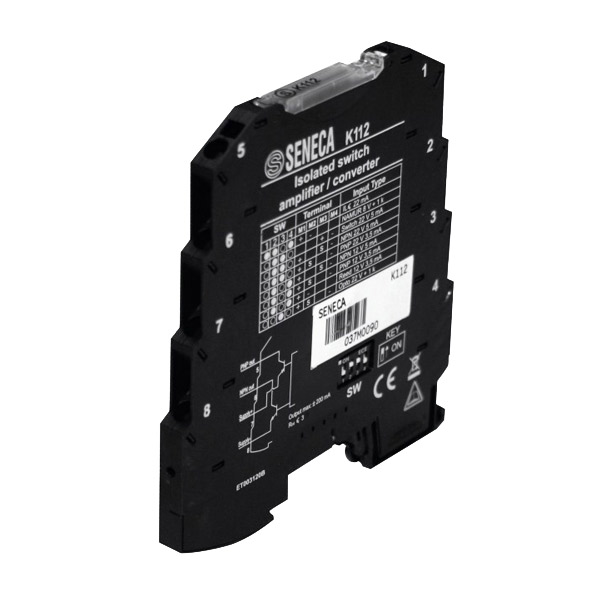

K112.
Digital Universal Coupler / Isolator.
Power Supply: 19.2-30VDC.
Input: Contact, Namur, NPN, PNP (12 or 22V) 2/3 wires, Reed, Photo Cell, Max. Frequency 400Hz.
Output: PNP and NPN Simultaneous, Max Current 200mA Max Voltage 30V continuous and 50V pulse.
Operating Temperature: -10 .. +65 Degrees Celsius.
| Weight | 250 g |
|---|---|
| Naam bij leverancier | K112 |
| Productcode | K112 |
