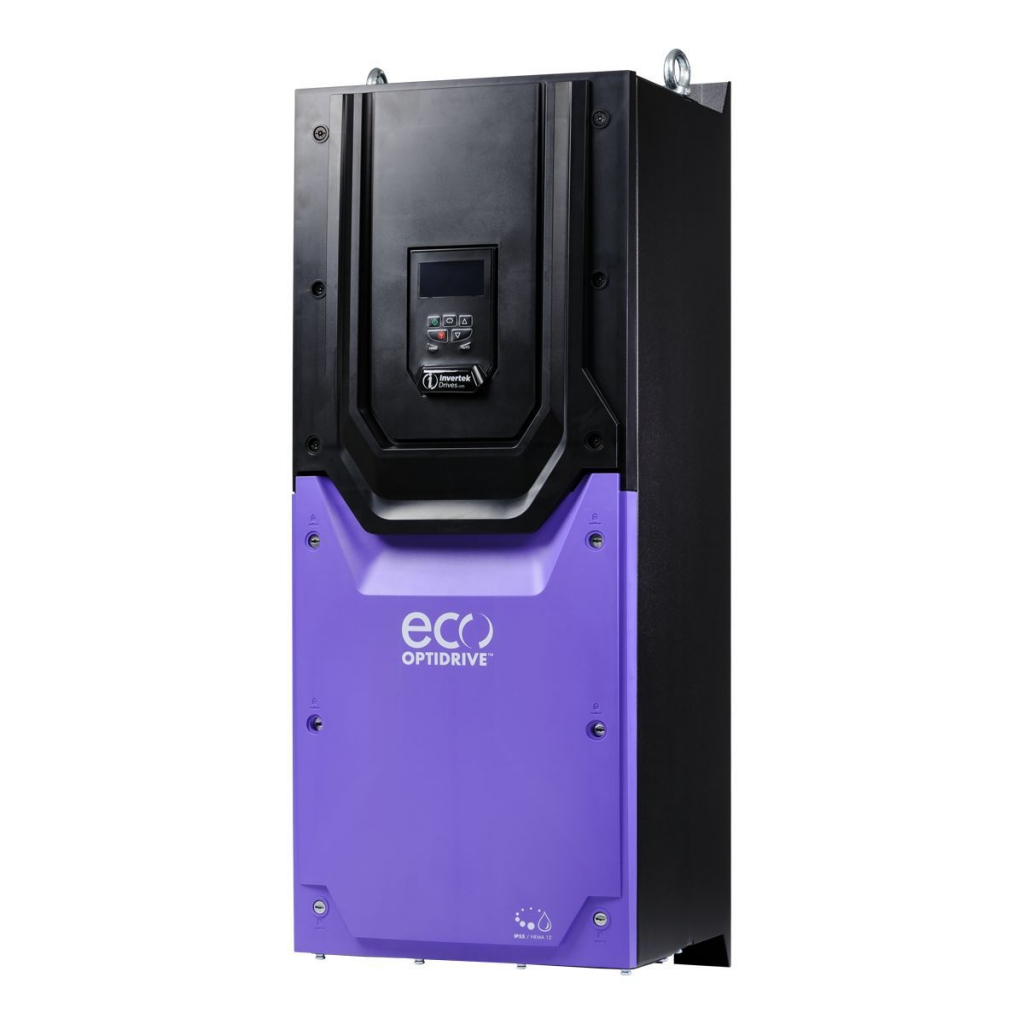

Invertek ODV-3-641800-3F1N-MN | 90kW/180A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 330x865x330mm | IP55 | 50kg | TFT Display
Especially suitable for controlling pumps and fans
Lower input current (iTHD <30%).
PLC functionality.
Sleep and wake function.
Fire mode.
Energy saving function.
PID check.
Standard ModBus RTU/BACNet.
Capture function for 2 directions of rotation.
String breakage and dry running detection.
Cascade Control.
Pump clean, Pump blockade and Pumpstir function.
Mains filter (EN61800-3. Cat. C1/C2)
