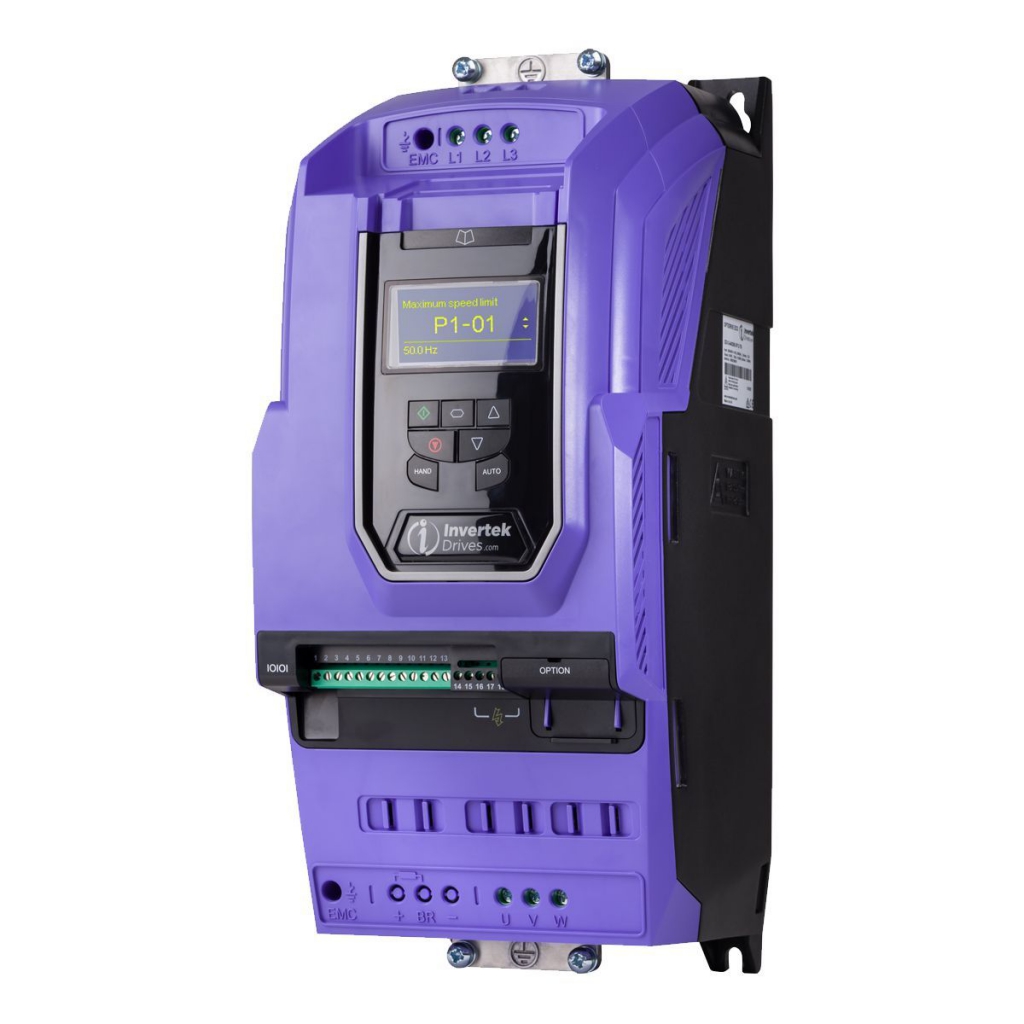

Invertek ODV-3-440460-3F12-MN | 22kW/46A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 160x418x240mm | IP20 | 8.1kg | TFT Display
Mains filter (EN61800-3 Cat. C1 / C2) complies with EN-61800-3: 2004.
Lower input current (iTHD <30%). smaller diameter of the cable and lighter switching material required.
PLC Functionality.
Automatic Sleep and wake up mode.
Fire mode.
Energy saving function.
PID control.
Standard ModBus RTU/BACNet.
Capture function for 2 directions of rotation.
String breakage and dry running detection.
Cascade Control.
Pomp clean, Pomp blockade and pompstir function.
Safety stop according to IEC 61508 SIL2.
