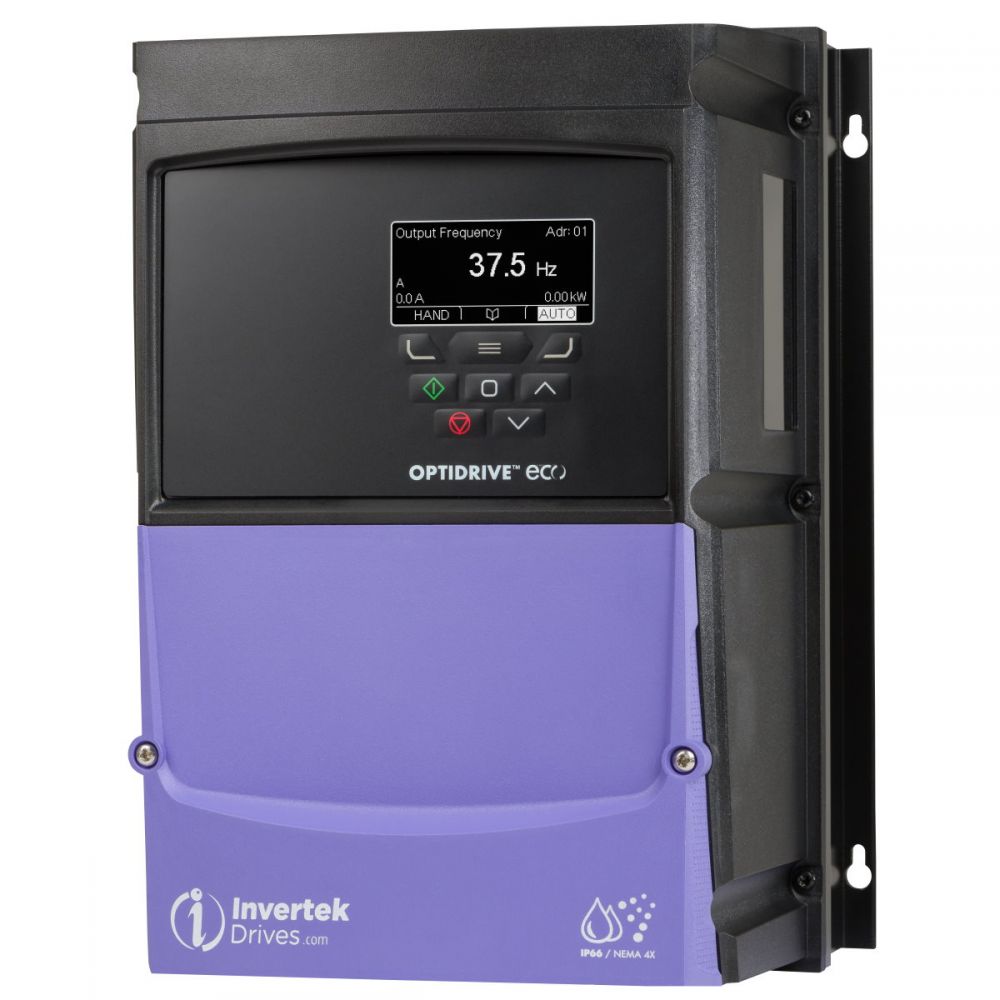

Invertek ODV-3-340240-3F1A-MN | 11kW/24A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 211x310x235mm | IP66 | 8.5kg | TFT Display
Suitable for fans and pumps.
Lower input current, as a result, cable diameter and switch material can be selected smaller. (iTHD < 30%) Better power factor lower reactive power
STO Safety Stop according to IEC 61508 SIL2
2 x RJ45 for PC communication, ModBus RTU and BACnet
Suitable for PM motors, Reluctance and BLDC motors
Belt break, dry running and pipe break detection
Pump Clean, Pump Block and Pump Stir function
Fire Mode, Energy Saving Function
Catch function (2 directions)
Cascade control for max 5 controllers
PID control with sleep/wake mode
PLC function
