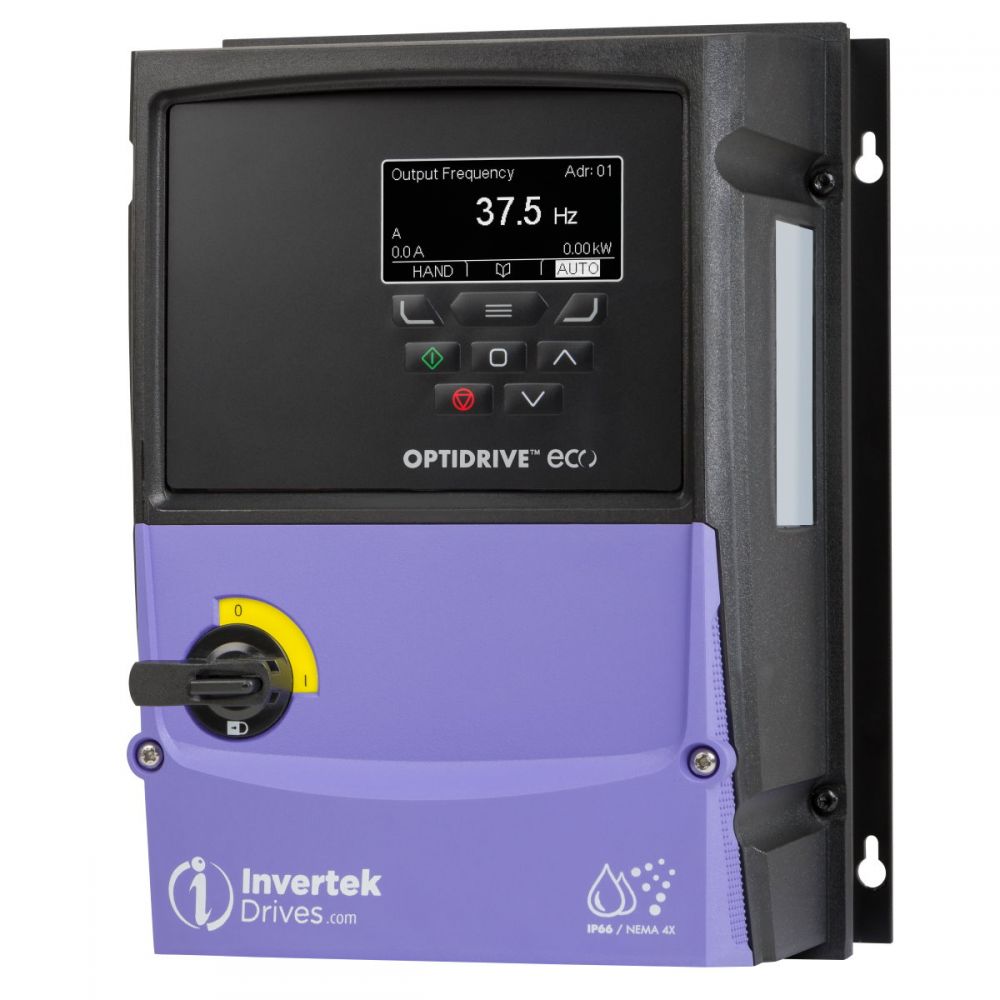

ODV-3-240058-3F1E-MN | 2.2kW/5.8A | Variable frequency drive

, ,

864,00 Br.

Invertek ODV-3-240058-3F1E-MN | 2.2kW/5.8A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 188x257x186mm | IP66 | 3.5kg | TFT Display | Main switch

Interested? Apply for a business account

Invertek ODV-3-240058-3F1E-MN | 2.2kW/5.8A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 188x257x186mm | IP66 | 3.5kg | TFT Display | Main switch

Suitable for fans and pumps.
Lower input current, as a result, cable diameter and switch material can be selected smaller. (iTHD < 30%) Better power factor lower reactive power. STO Safety Stop according to IEC 61508 SIL2. 2 x RJ45 for PC communication, ModBus RTU and BACnet. Suitable for PM motors, Reluctance and BLDC motors. Belt break, dry running and pipe break detection. Pump Clean, Pump Block and Pump Stir function. Fire Mode, Energy Saving Function. Catch function (2 directions). Cascade control for max 5 controllers. PID control with sleep/wake mode. PLC function.

Weight 5500 g
Naam bij leverancier

ODV-3-240058-3F1E-MN

Productcode

ODV-3-240058-3F1E-MN
