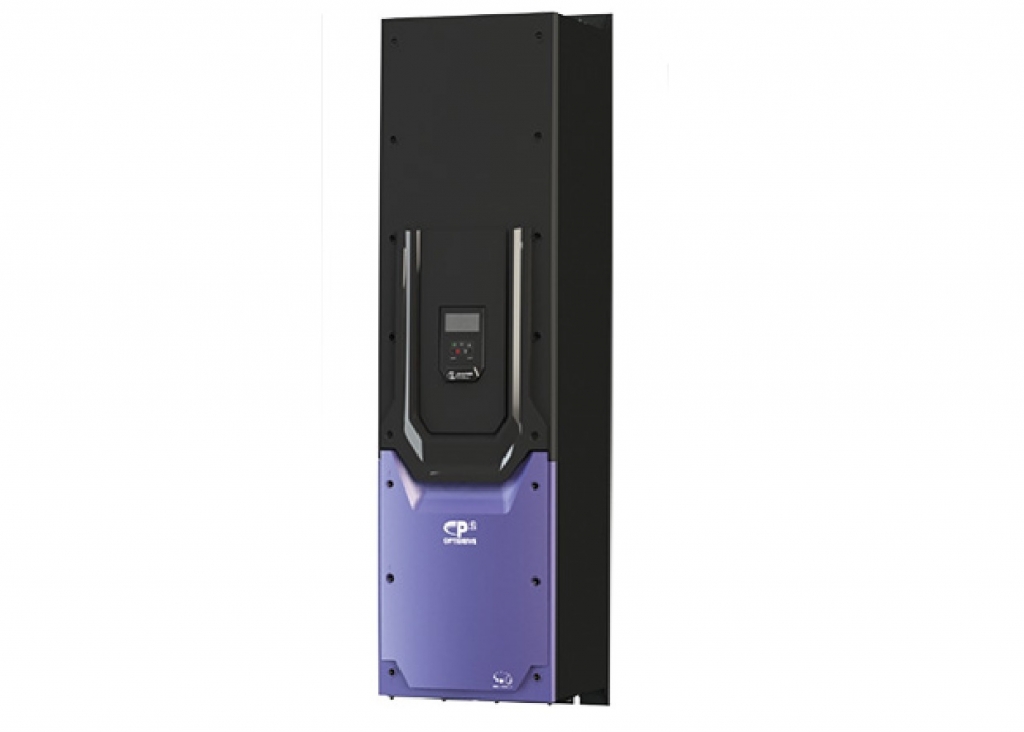

Invertek ODP-2-74160-3KF4N-MN | 160kW/302A Variable frequency drive | 3Ph-3Ph | 380-480V | 330x1280x360mm | IP55 | 80kg | TFT Display
Global DNV Marine approval.
For Fans, Pumps, Compressors, Mixers, Conveyor belts, Elevators, Hoists, Shredders, Wrapping systems, Centrifuges, Washing machines.
Built-in mains filter (EN61800-3 Cat. C1/C2).
Ambient temperature +50C.
Safety stop according to IEC 61508 SIL2.
Detachable terminals.
Standard CAN-Open and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for PM motors, Reluctance and BLDC motors.
