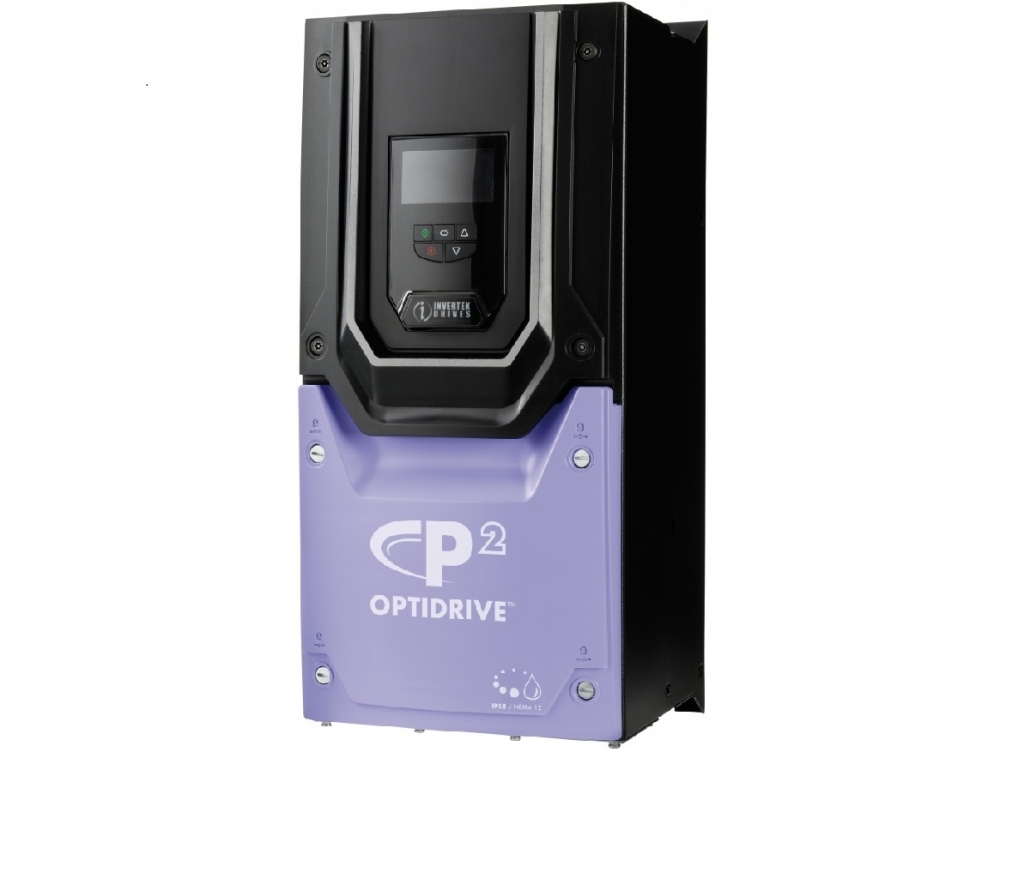

Invertek ODP-2-54370-3KF4N-MN | 37kW/72A Variable frequency drive | 3Ph-3Ph | 380-480V | 235x540x270mm | IP55 | 22.5kg | TFT Display
For Fans, Pumps, Compressors, Mixers, Conveyor belts, Elevators, Hoists, Schredders, Wrapping systems, Centrifuges, Washing machines.
Global DNV Marine approval.
Mains filter (EN61800-3 Cat. C1/C2).
Ambient temperature +50C.
Emergency stop according to IEC 61508 SIL2.
Detachable terminals.
Standard CAN-Open and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for permanent magnet motors.
