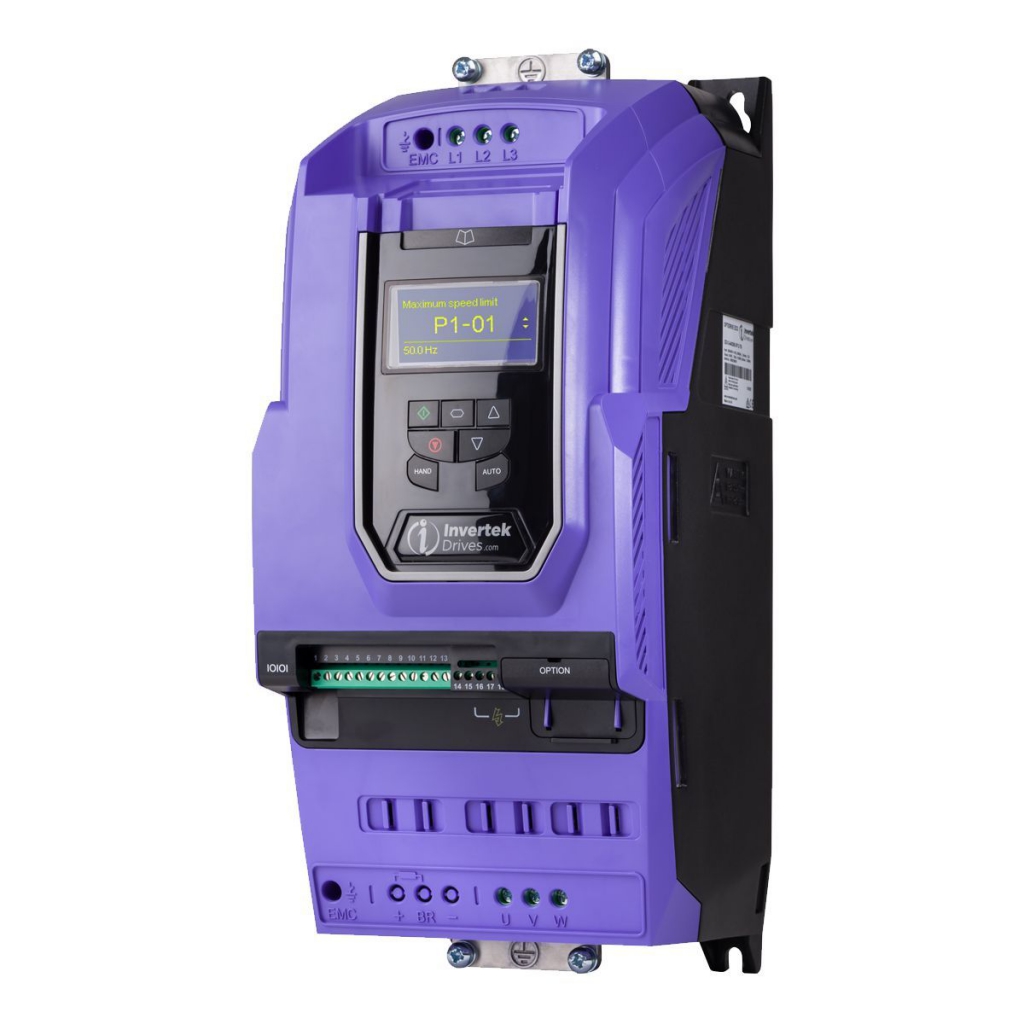

Invertek ODP-2-54300-3KF42-MN | 30kW/61A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 222x486x260mm | IP20 | 18.2kg | TFT Display
Suitable for fans, pumps, compressors, mixers, conveyors, elevators, hoists, shredders, winding systems, centrifuges, and washing machines.
Mains filter (EN61800-3 Category C1/C2).
Ambient temperature up to +50 °C.
Safety stop according to IEC 61508 SIL2.
Removable connection terminals.
Standard CANopen and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Compatible with IE2, IE3, PM, BLDC, and SynRM motors.
