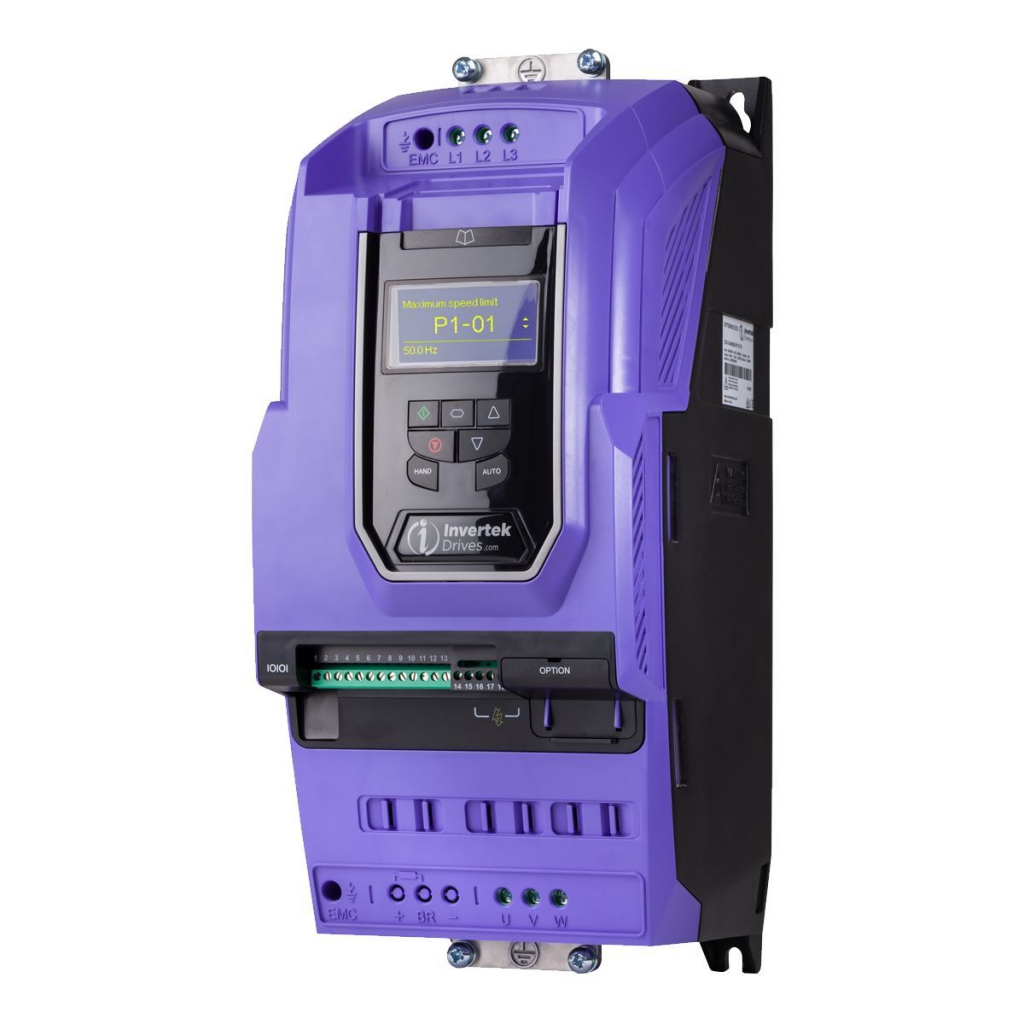

Invertek ODP-2-44220-3KF42-MN | 22kW/46A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 160x418x240mm | IP20 | 9.2kg | TFT Display
For Fans, Pumps, Compressors, Mixers, Conveyor belts, Elevators, Hoists, Shredders, Wrapping systems, Centrifuges, Washing machines.
Mains filter (EN61800-3 Cat. C1/C2).
Ambient temperature +50°C.
Emergency stop according to IEC 61508 SIL2.
Detachable terminals.
Standard CAN-Open and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for permanent magnet motors.
