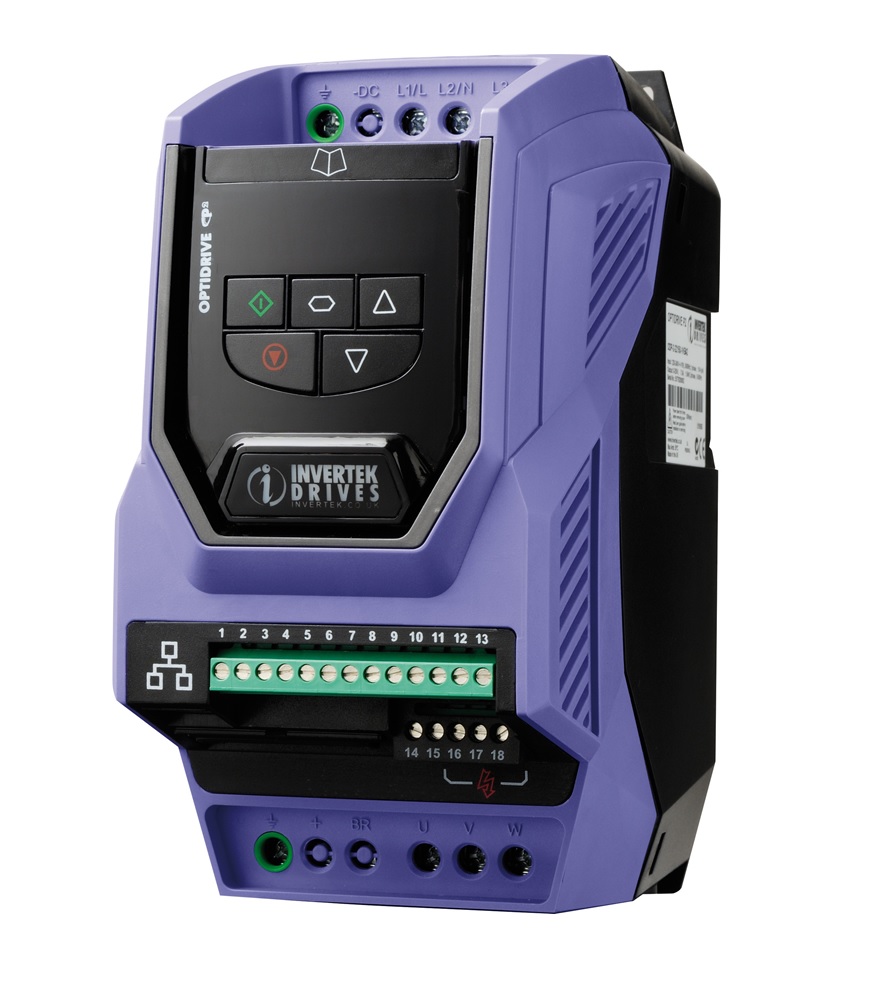

Invertek ODP-2-24075-3KF42-MN | 0.75kW/2.2A Variable frequency drive | 3Ph-3Ph | 380-480V | IP20 | 112x221x185mm | 1.8kg | TFT Display
For Fans, Pumps, Compressors, Mixers, Conveyor belts, Elevators, Hoists, Schredders, Wrapping systems, Centrifuges, Washing machines.
Mains filter (EN61800-3 Cat. C1/C2).
Ambient temperature +50°C.
Emergency stop according to IEC 61508 SIL2.
Detachable terminals.
Standard CAN-Open and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for PM motors, Reluctance and BLDC motors.
