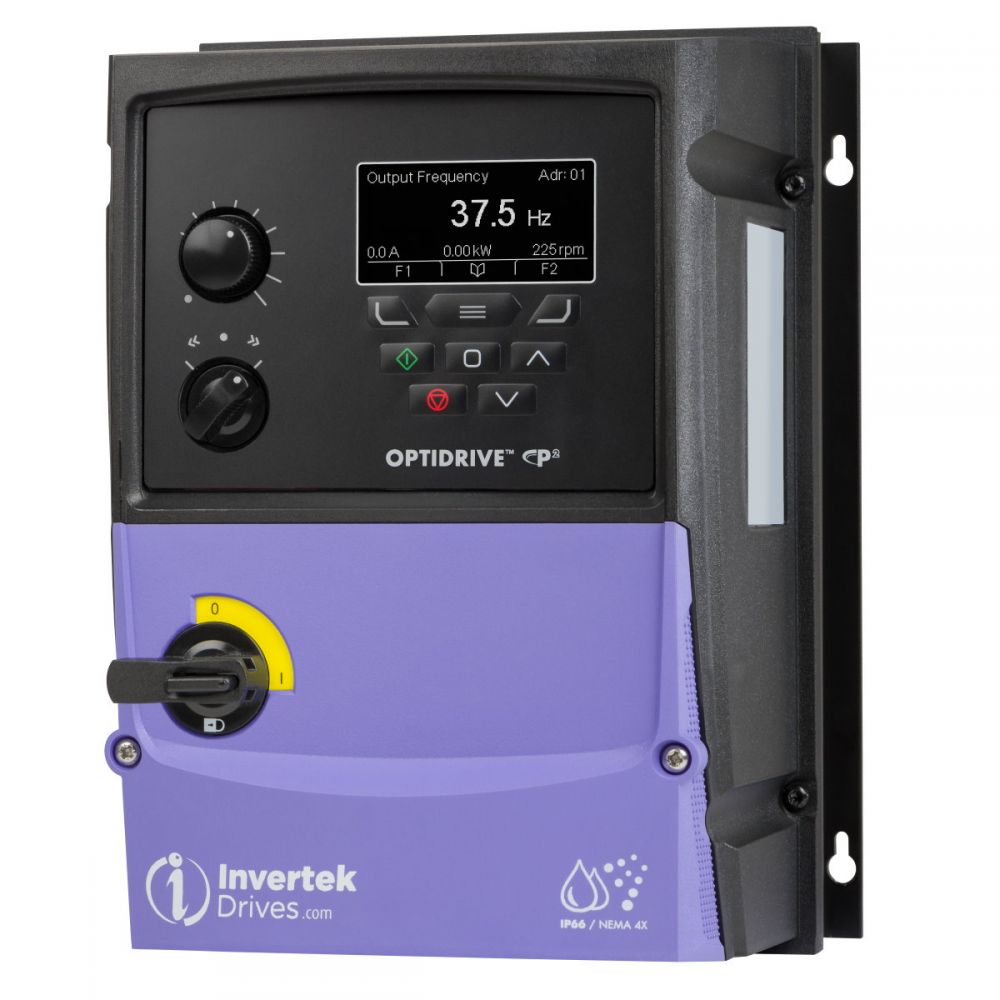

Invertek ODP-2-22150-1KF4B-MN | 1.5kW/7A Variable frequency drive | 1Ph-3Ph | 200-240VAC | 188x257x186mm | IP66 | 3.5kg | TFT Display | Main switch
Suitable for Fans, Pumps, Compressors, Mixers, Conveyors, Elevators, Hoisting Equipment, Shredders, Wrapping Systems, Centrifuges, Washing Machines.
Built-in mains filter (EN61800-3 Cat. C1).
Ambient temperature +40°C.
Safety stop according to IEC 61508 SIL2.
Master/Slave control with load sharing.
Standard CANopen and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for IM (IE2-IE3), PM, BLDC, LSPM, and SynRM motors.
