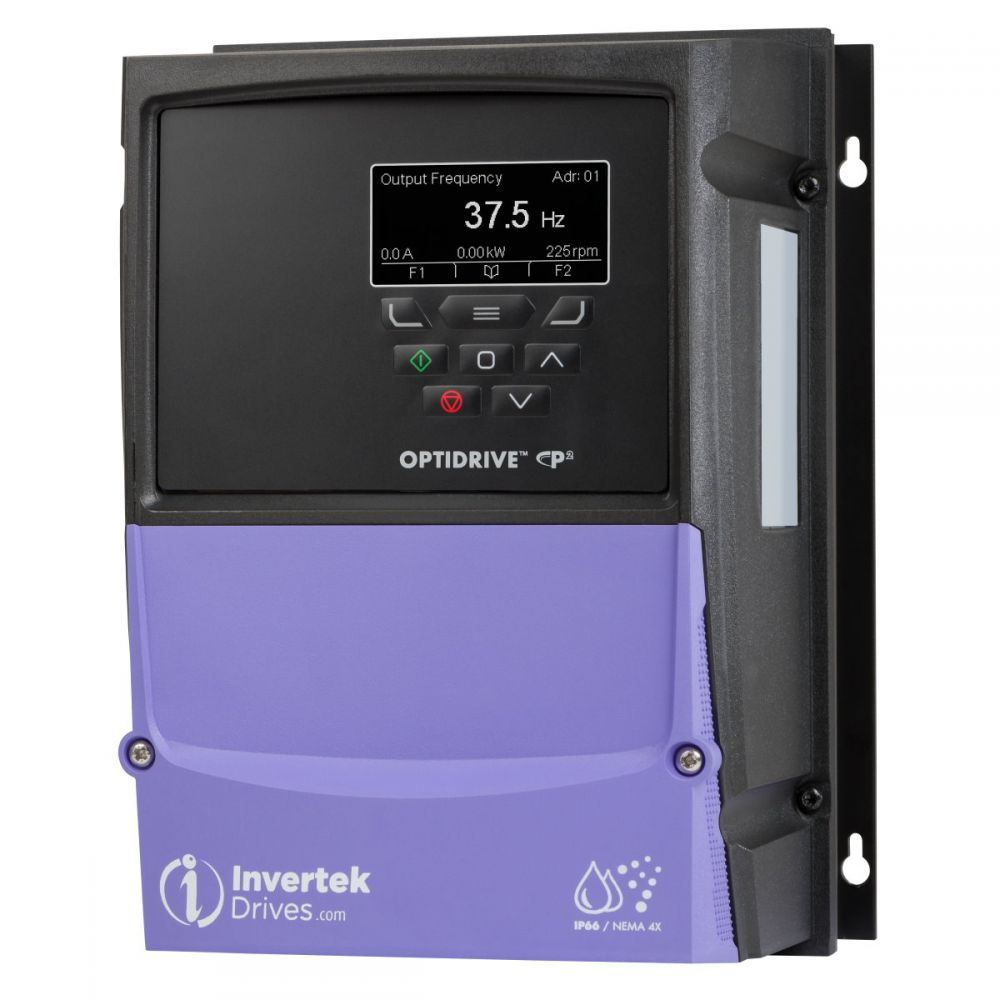

Invertek ODP-2-22150-1KF4A-MN | 1.5kW/7A Variable frequency drive | 1Ph-3Ph | 200-240VAC | 188x257x186mm | IP66 | 3.5kg | TFT Display
For Fans, Pumps, Compressors, Mixers, Conveyor Belts, Elevators, Hoists, Shredders, Wrapping Systems, Centrifuges, Washing Machines.
Mains filter (EN61800-3 Cat. C1/C2).
Ambient temperature +40°C.
Safety Stop (IEC 61508 SIL2).
Detachable terminals.
Standard CAN-Open and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for permanent magnet motors.
