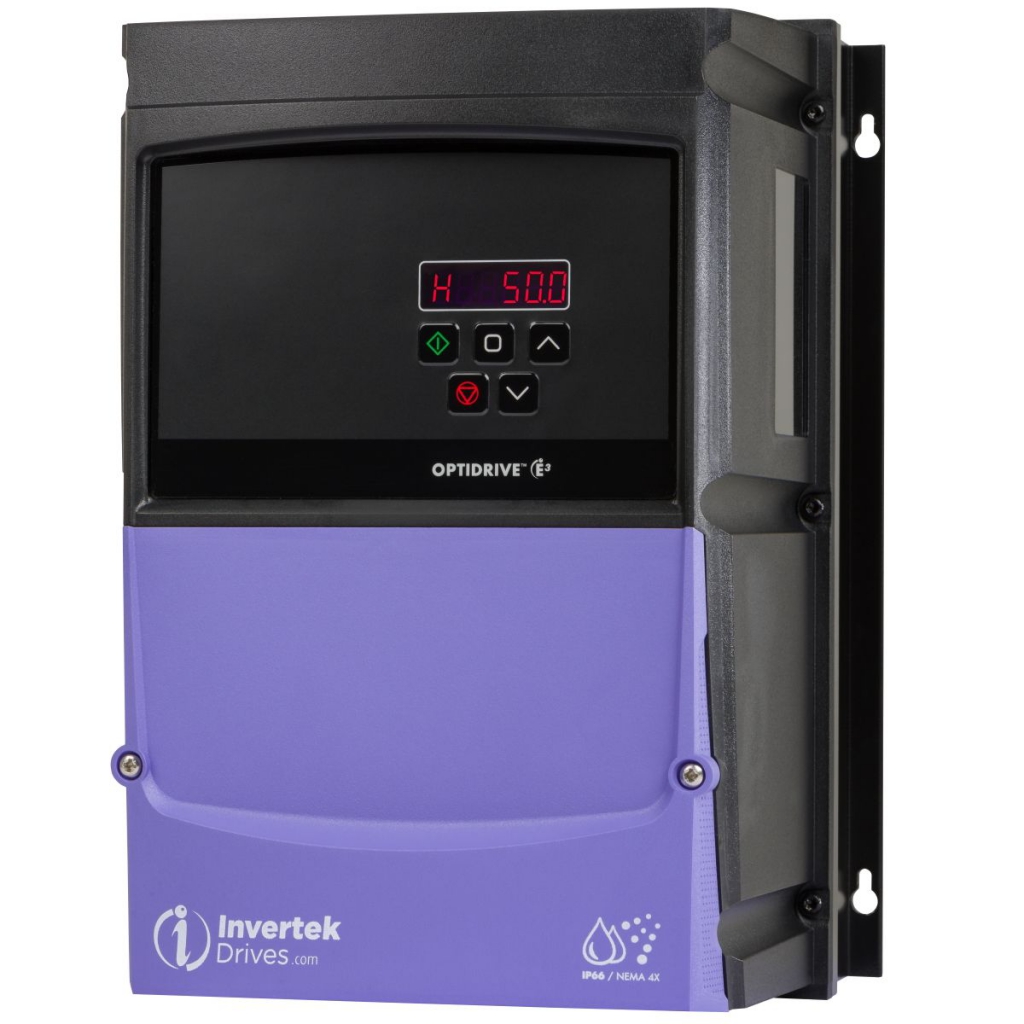

Invertek ODE-3-340140-3F4A-MTP | 5.5kW/14A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 211x310x215mm | IP66 | 5kg | TFT Display
Suitable for Induction, Permanent magnet, Reluctance and BLDC motors.
Application macros to choose between: Industry or Pump and fan functions
Mains filter (EN61800-3 Category C1/C2).
14 basic parameters for the most used applications.
Energy saving function.
2x RJ45 for PC communication, ModBus TCP/IP.
40°C Ambient temperature.
PI-control with drag mode.
Master/Slave Function.
Fire-Mode.
