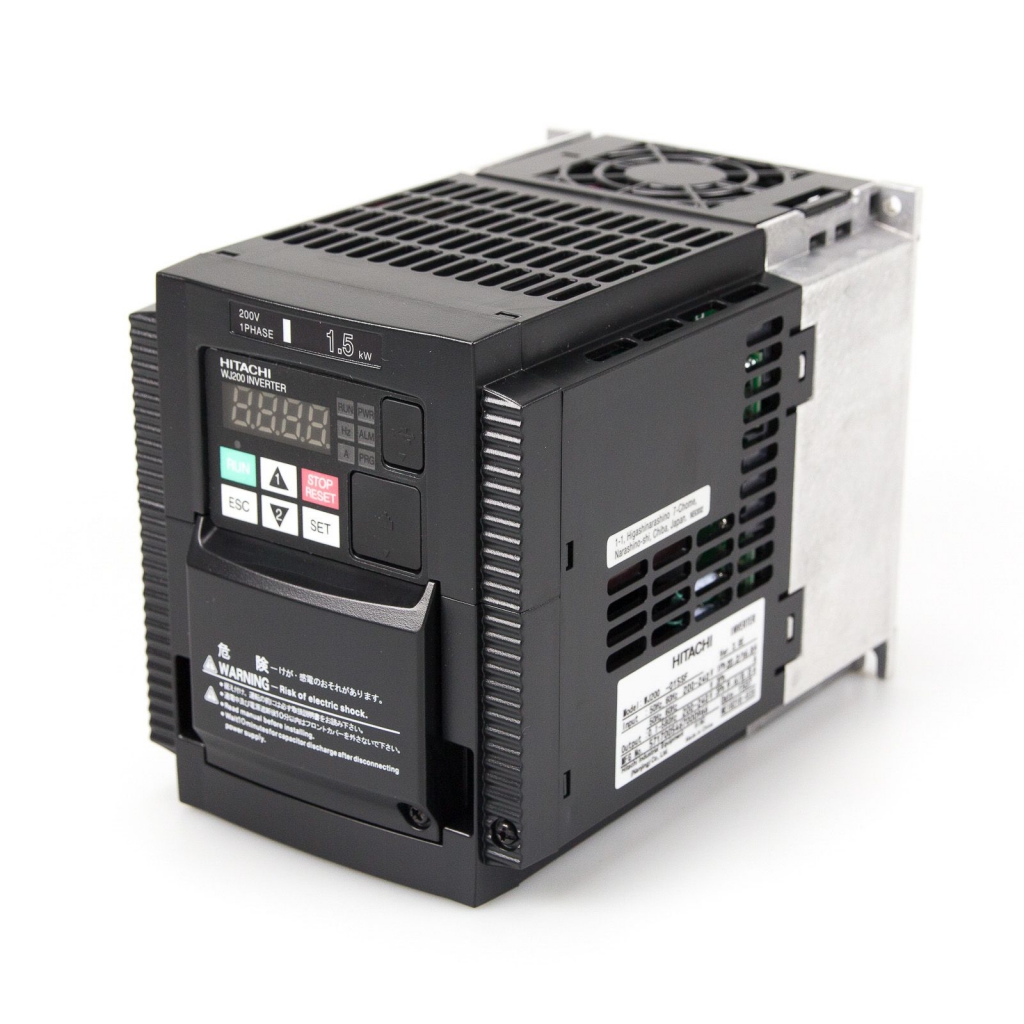

Hitachi WJ200-022SF | 2.2kW/3.0kW | 11A/12A Variable frequency drive | 1Ph-3Ph | 200-240V | 108x128x170.5mm | 1.8kg | dual rating
For fans, pumps, compressors, mixers, conveyor belts, lifts, hoists, centrifuges and washing machines.
200% starting torque (with CT, heavy selection).
Equipped with an internal braking unit (excluding braking resistor).
PTC input.
Programmable analog 0-10V output.
Internal PID controller.
with display.
RS485 Modbus RTU.
Spring Signal Clamps.
Easy sequence PLC.
Safe stop function.
Mini USB and RS422 port.
Dual Rating:
CT (Heavy Duty 60sec. 150%).
VT (Normal Duty 60sec 120%).
CE, UL, C-UL, C-Tick.
