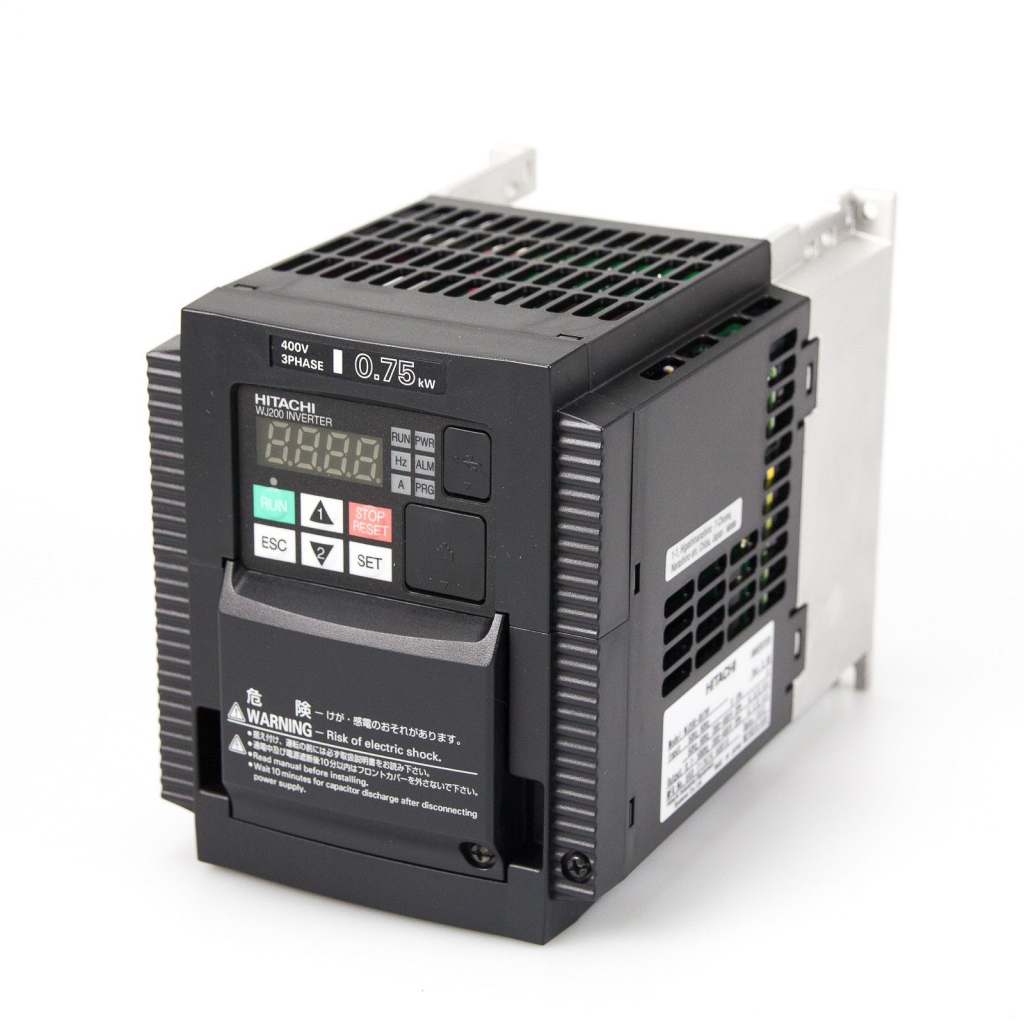

Hitachi WJ200-007HF | 0.75kW/1.5kW | 3.4A/4.1A Variable frequency drive | 3Ph-3Ph | 380-480V | IP20 | 108x128x170.5mm | 1.6kg | Dual rating
For fans, pumps, compressors, mixers, conveyor belts, lifts, hoists, centrifuges and washing machines.
200% starting torque (with CT, heavy selection).
Equipped with an internal braking unit (excluding braking resistor).
PTC input.
Programmable analog 0-10V output.
Internal PID controller.
Including Display.
RS485 Modbus RTU.
Spring Connection terminals.
Easy Sequence PLC.
Safe Stop function.
Mini USB and RS422 port.
Dual Rating.
CT (Heavy Duty 60sec. 150%).
VT (Normal Duty 60sec 120%).
CE, UL, C-UL, C-Tick.
