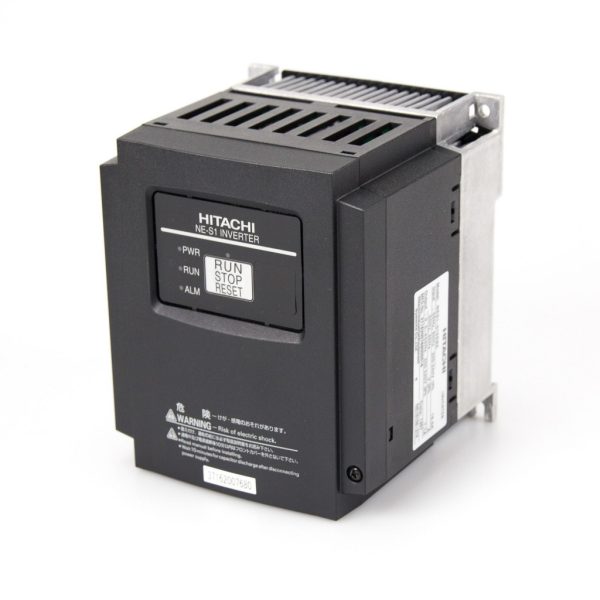

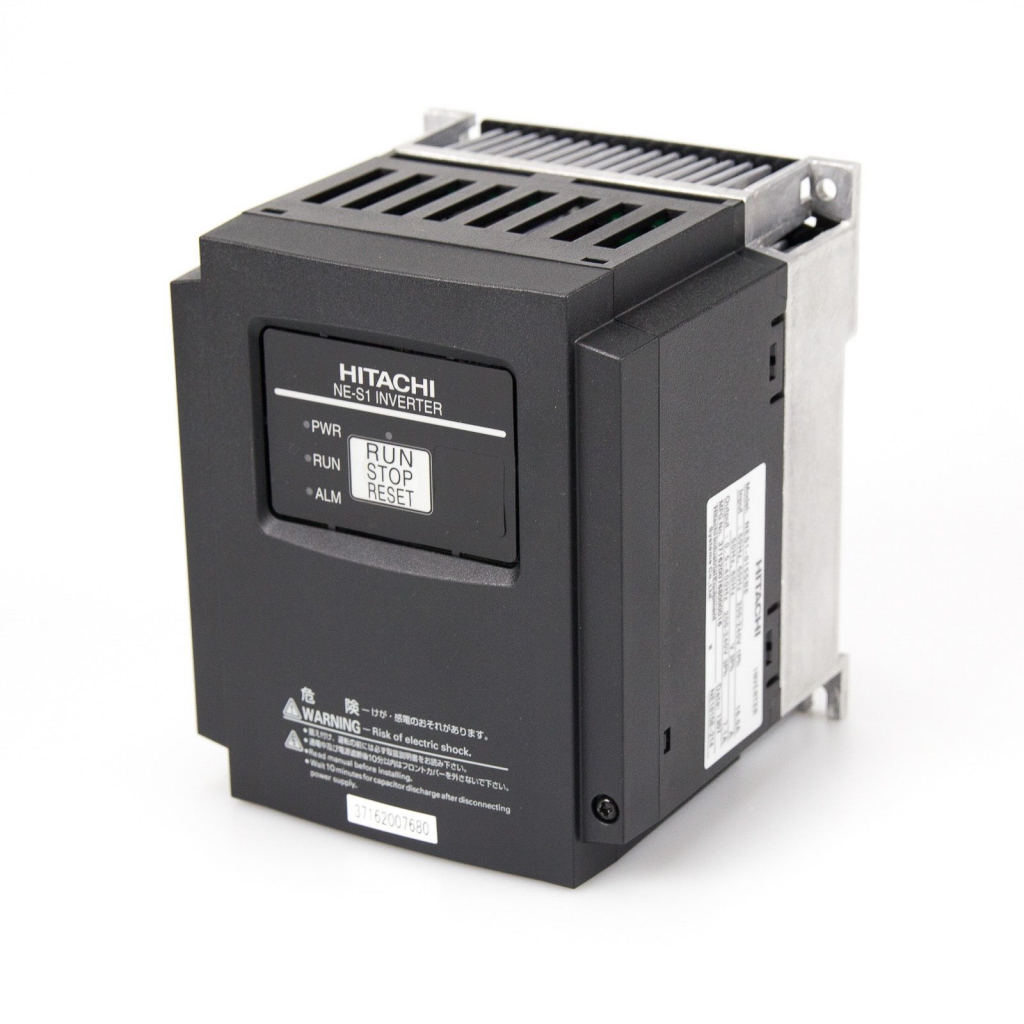

Hitachi NES1-015SBE | 1.5kW/7.1A Variable frequency drive | 1Ph-3Ph | IP20 | 108x128x107mm | 1.2kg | Super compact | Side by side mounting possible
Display is optional.
Starting torque 100% / 6Hz.
Maximum overload 150% for 60sec.
Side-by-side assembly.
Analogue 0-10V or 4-20mA output (selector switch).
Internal PID controller.
RS485 (MODBUS RTU).
RJ45 port.
Connections with screw terminals.
Main current connections with screw terminals.
Global standards (CE, UL, c-UL, C-Tick).
Parameter adjustment via NES1-OP or WOP.
