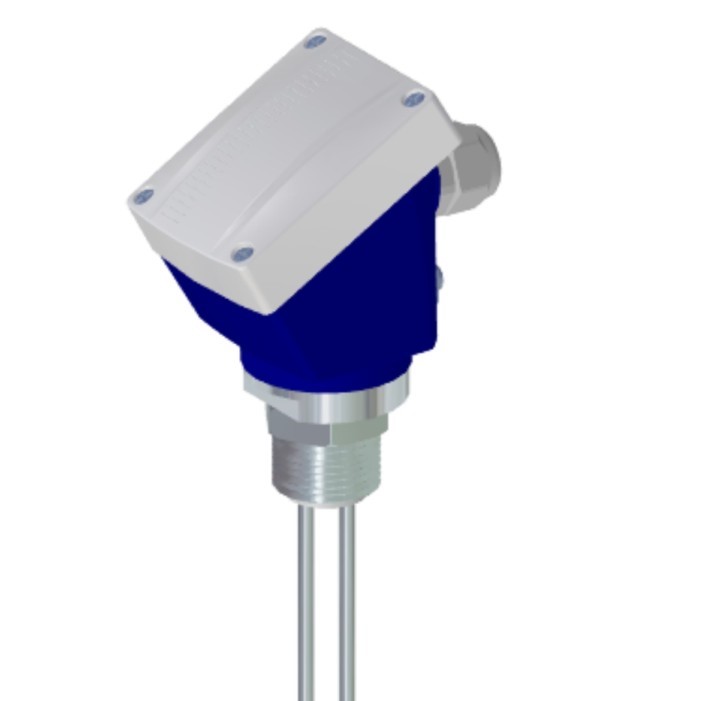

Disibeint NCVR-TB-INOX-3E | Level sensor with integrated amplifier
Compact electrode holder for small tanks.
Length: 1000mm with uninsulated electrodes.
Adjustable with the selector knob and programmingbutton.
The following settings can be adjusted:
the status of the relay contacts, response time, sensitivity, filling or emptying.
Mechanical connection: G1 “,. SS AISI316 (1.4401).
Electrical connection: Connection in housing. PBT.
+ 70ºC.
5kg/cm².
IP67.
With two electrodes: one control point level.
With three electrodes: control, max. / Min.
