IMN-70A-INOX | Vertical float switch

, ,

213,94 Br.

Disibeint IMN-70A-INOX | Float Switch | Level switch | AISI316 | G1/4″ | Vertical Mounting | Temperatures up to +125º Celsius

Interested? Apply for a business account

Disibeint IMN-70A-INOX | Float Switch | Level switch | AISI316 | G1/4″

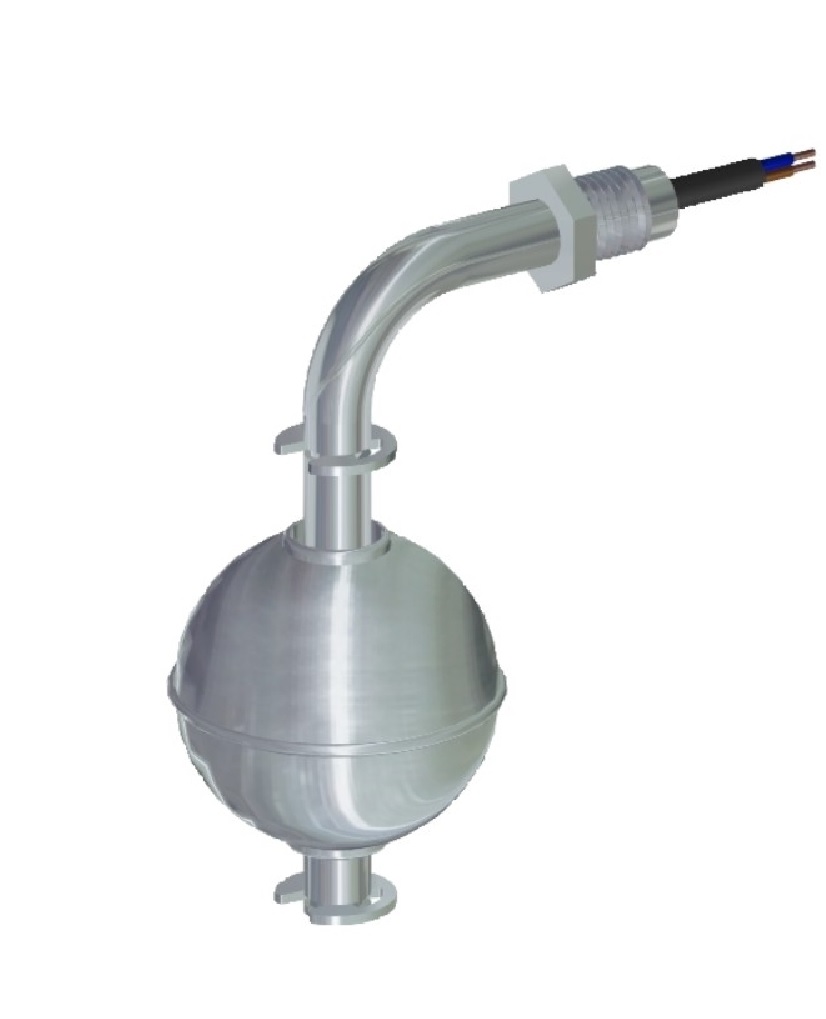

SS316 Magnetic Level Switch | Float switch with reed contact.
For installation in the side of a tank.
Process connection: G1/4″, stainless steel AISI316 (1.4401).
Length: 70mm.
Float: ø52mm.
Contacts: (NO) 120W/VA-3A/250VAC/DC.
Density: 0.7g/cm³.
Pressure: 30kg/cm²
by reversing the float, the contact changes from NO to NC.

Weight 95 g
Naam bij leverancier

IMN-70A-INOX

Productcode

IMN-70A-INOX

Disibeint IMN 70A INOX Series
